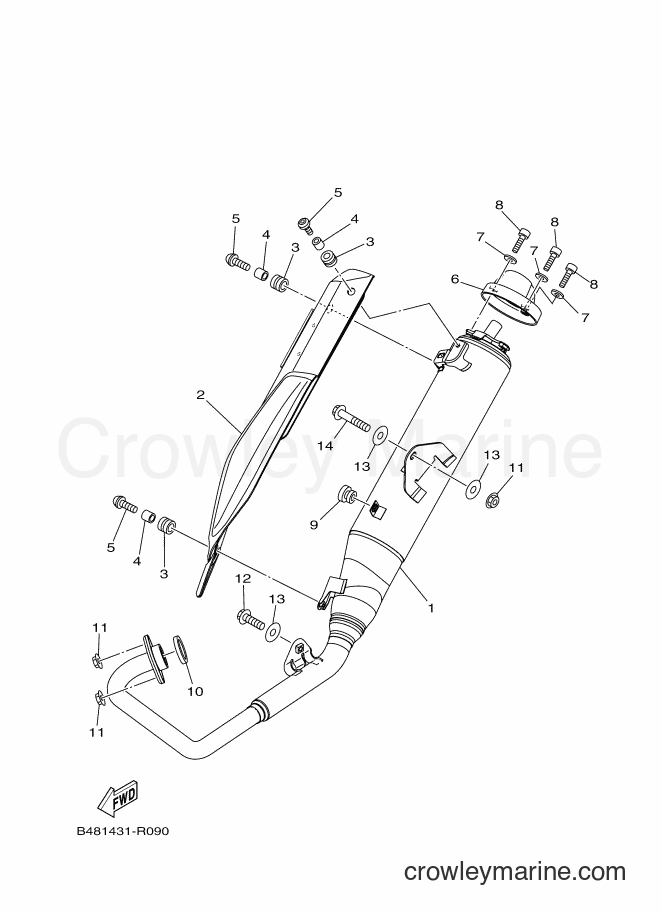

2017 Street Bike TFX150 - TFX150 (B483) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TFX150 (B483) [010] - EXHAUST
Change View:
MUFFLER COMP. 1
1
Yamaha Motors
MUFFLER COMP. 1B48-E4703-00
Required: 1
MUFFLER COMP. 1
Price unavailable
PROTECTOR ASSY
2
Yamaha Motors
PROTECTOR ASSYB48-E4708-00
Required: 1
PROTECTOR ASSY
Price unavailable
-10%
GROMMET 4FW
3
Yamaha Motors
GROMMET 4FW90480-12581-00
Required: 3
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
COLLAR
4
Yamaha Motors
COLLAR90387-06023-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
BOLT,HEX. SOCKET BUTTON
5
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06826
Required: 3
BOLT,HEX. SOCKET BUTTON
Price unavailable
CAP
6
Yamaha Motors
CAPB48-E4799-00
Required: 1
CAP
Price unavailable
-10%
BOLT
8
Yamaha Motors
BOLT91380-06016-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$7.99
$7.19
You save $0.80
More details
-10%
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10017-00
Required: 1
GROMMET
Supersedes: 90480-10332-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
GASKET, EXHAUST PIPE
10
Yamaha Motors
GASKET, EXHAUST PIPE21C-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
-10%
Plate Washer
13
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
