2017 Street Bike TFX150 - TFX150 (B482) [010] REAR WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

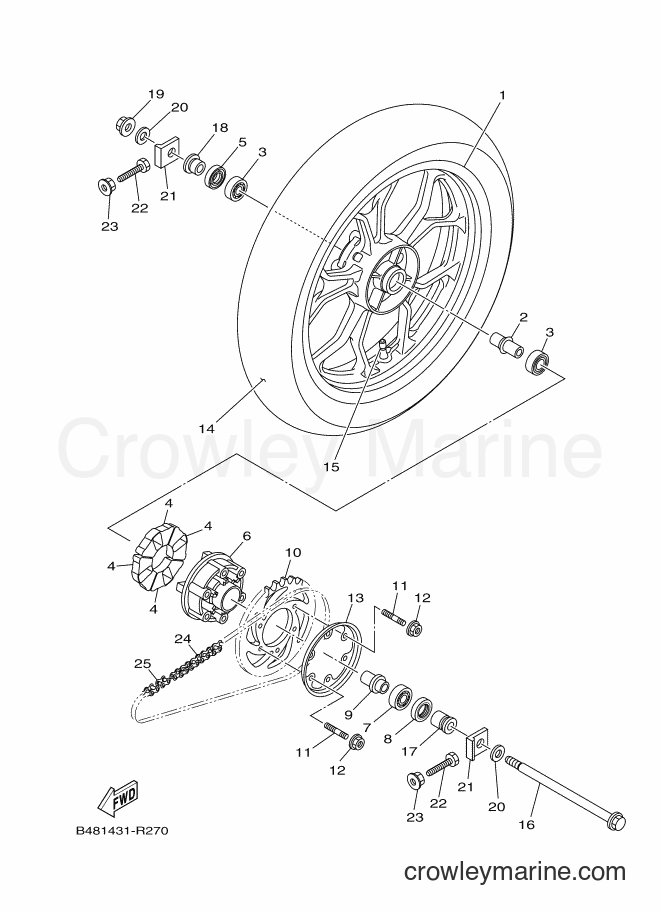

Yamaha Motors TFX150 (B482) [010] - REAR WHEEL
Change View:
CAST WHEEL, REAR
1
Yamaha Motors
CAST WHEEL, REARBG7-F5338-00
Required: 1
CAST WHEEL, REAR
Price unavailable
CAST WHEEL, REAR
1
Yamaha Motors
CAST WHEEL, REARB48-F5338-40
Required: 1
CAST WHEEL, REAR
Price unavailable
COLLAR ASSY
2
Yamaha Motors
COLLAR ASSY1PA-F530S-00
Required: 1
COLLAR ASSY
Price unavailable
BEARING
3
Yamaha Motors
BEARING93306-252YP
Required: 2
BEARING
Price unavailable
DAMPER
4
Yamaha Motors
DAMPER54B-F5364-00
Required: 4
DAMPER
Price unavailable
CLUTCH, HUB (0033, YB)
6
Yamaha Motors
CLUTCH, HUB (0033, YB)B48-F5366-00-33
Required: 1
CLUTCH, HUB (0033, YB)
Price unavailable
BEARING
7
Yamaha Motors
BEARING93306-054XC
Required: 1
BEARING
Price unavailable
COLLAR, WHEEL
9
Yamaha Motors
COLLAR, WHEEL1PA-F5377-00
Required: 1
COLLAR, WHEEL
Price unavailable
SPROCKET, DRIVEN (47T)
10
Yamaha Motors
SPROCKET, DRIVEN (47T)B48-F5447-00
Required: 1
SPROCKET, DRIVEN (47T)
Price unavailable
BOLT, STUD
11
Yamaha Motors
BOLT, STUD90116-08826
Required: 6
BOLT, STUD
Price unavailable
-10%
Self-locking Nut
12
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 6
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$3.20
$2.88
You save $0.32
More details
PLATE, GUIDE
13
Yamaha Motors
PLATE, GUIDEB48-F5689-00
Required: 1
PLATE, GUIDE
Price unavailable
TIRE (130/70-17 M/C 62S NR88)
14
Yamaha Motors
TIRE (130/70-17 M/C 62S NR88)94113-17811
Required: 1
TIRE (130/70-17 M/C 62S NR88)
Price unavailable
-10%
RIM VALVE
15
Yamaha Motors
RIM VALVE93900-00828-00
Required: 1
VALVE, RIM
Cross Ship
Leaves in 2-5 days
$4.95
$4.46
You save $0.50
More details
AXLE, WHEEL
16
Yamaha Motors
AXLE, WHEELB48-F5381-00
Required: 1
AXLE, WHEEL
Price unavailable
COLLAR, SPROCKET AXLE
17
Yamaha Motors
COLLAR, SPROCKET AXLE1CK-F5386-00
Required: 1
COLLAR, SPROCKET AXLE
Price unavailable
COLLAR, WHEEL
18
Yamaha Motors
COLLAR, WHEELB48-F5383-00
Required: 1
COLLAR, WHEEL
Price unavailable
-10%
95601-14200-00
19
Yamaha Motors
95601-14200-0095602-14200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
WASHER, PLATE
20
Yamaha Motors
WASHER, PLATE90201-15030
Required: 2
WASHER, PLATE
Price unavailable
PULLER, CHAIN 1
21
Yamaha Motors
PULLER, CHAIN 1B48-F5388-10
Required: 2
PULLER, CHAIN 1
Price unavailable
-10%
BOLT
22
Yamaha Motors
BOLT90101-08006-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
CHAIN
24
Yamaha Motors
CHAIN2PL-F53C0-00
Required: 1
CHAIN
Price unavailable
JOINT, CHAIN
25
Yamaha Motors
JOINT, CHAIN2PL-F53C2-00
Required: 1
JOINT, CHAIN
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
