2017 Street Bike TFX150 - TFX150 (B482) [010] STAND & FOOTREST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

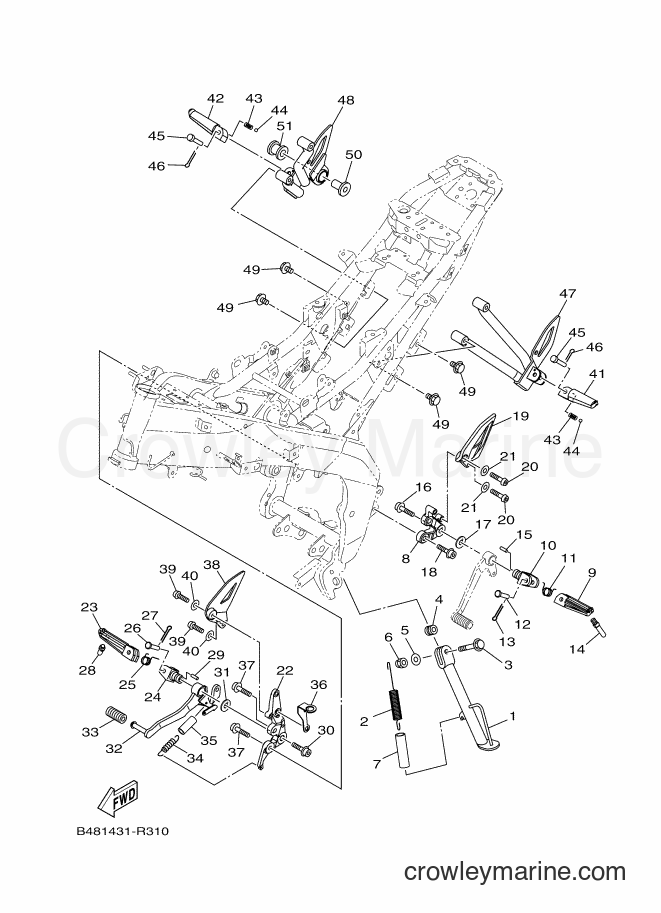

Yamaha Motors TFX150 (B482) [010] - STAND & FOOTREST
Change View:
STAND, SIDE
1
Yamaha Motors
STAND, SIDEB48-F7311-00
Required: 1
STAND, SIDE
Price unavailable
SPRING, TENSION
2
Yamaha Motors
SPRING, TENSION90506-28800
Required: 1
SPRING, TENSION
Price unavailable
BOLT, FLANGE
3
Yamaha Motors
BOLT, FLANGE90105-10888
Required: 1
BOLT, FLANGE
Price unavailable
-10%
COLLAR
4
Yamaha Motors
COLLAR90387-10003-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$28.99
$26.09
You save $2.90
More details
-10%
NUT
6
Yamaha Motors
NUT95617-10100-00
Required: 1
NUT, U
Supersedes: 95612-10100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
HOSE (L70)
7
Yamaha Motors
HOSE (L70)90445-21848
Required: 1
HOSE (L70)
Price unavailable
BRACKET 2
8
Yamaha Motors
BRACKET 2B48-F7442-00
Required: 1
BRACKET 2
Price unavailable
FOOTREST
9
Yamaha Motors
FOOTRESTB48-F7451-00
Required: 1
FOOTREST
Price unavailable
FOOTREST 1
10
Yamaha Motors
FOOTREST 1B48-F7411-00
Required: 1
FOOTREST 1
Price unavailable
-10%
Torsion Spring
11
Yamaha Motors
Torsion Spring90508-183B9-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$4.60
$4.14
You save $0.46
More details
-10%
CLEVIS PIN
12
Yamaha Motors
CLEVIS PIN91701-08035-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
BOLT
14
Yamaha Motors
BOLTB48-F7435-00
Required: 1
BOLT
Price unavailable
PIN
15
Yamaha Motors
PIN90249-02002
Required: 1
PIN
Price unavailable
-10%
Hexagon Socket Bolt
16
Yamaha Motors
Hexagon Socket Bolt90110-10012-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$29.99
$26.99
You save $3.00
More details
WASHER, PLATE
17
Yamaha Motors
WASHER, PLATE90201-10847
Required: 1
WASHER, PLATE
Price unavailable
BOLT, HEXAGON SOCKET HEAD
18
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-08803
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
PLATE 1
19
Yamaha Motors
PLATE 1B48-F7445-00
Required: 1
PLATE 1
Price unavailable
-10%
Button head bolt
20
Yamaha Motors
Button head bolt92012-06020-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BRACKET 3
22
Yamaha Motors
BRACKET 3B48-F7443-00
Required: 1
BRACKET 3
Price unavailable
FOOTREST
23
Yamaha Motors
FOOTRESTB48-F7461-00
Required: 1
FOOTREST
Price unavailable
FOOTREST 1
24
Yamaha Motors
FOOTREST 1B48-F7411-00
Required: 1
FOOTREST 1
Price unavailable
-10%
Torsion Spring
25
Yamaha Motors
Torsion Spring90508-184B0-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$3.15
$2.83
You save $0.31
More details
-10%
CLEVIS PIN
26
Yamaha Motors
CLEVIS PIN91701-08035-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
BOLT
28
Yamaha Motors
BOLTB48-F7435-00
Required: 1
BOLT
Price unavailable
PIN
29
Yamaha Motors
PIN90249-02002
Required: 1
PIN
Price unavailable
-10%
Hexagon Socket Bolt
30
Yamaha Motors
Hexagon Socket Bolt90110-10012-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$29.99
$26.99
You save $3.00
More details
WASHER, PLATE
31
Yamaha Motors
WASHER, PLATE90201-10847
Required: 1
WASHER, PLATE
Price unavailable
PEDAL, BRAKE
32
Yamaha Motors
PEDAL, BRAKEB48-F7211-00
Required: 1
PEDAL, BRAKE
Price unavailable
COVER, SHIFT PEDAL
33
Yamaha Motors
COVER, SHIFT PEDAL1EG-E8113-10
Required: 1
COVER, SHIFT PEDAL
Price unavailable
-10%
TENSION SPRING
34
Yamaha Motors
TENSION SPRING90506-20193-00
Required: 1
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
HOSE
35
Yamaha Motors
HOSE90445-16807
Required: 1
HOSE
Price unavailable
STAY, STOP SWITCH
36
Yamaha Motors
STAY, STOP SWITCHB48-F144G-00
Required: 1
STAY, STOP SWITCH
Price unavailable
BOLT, HEXAGON SOCKET HEAD
37
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-08803
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
PLATE 2
38
Yamaha Motors
PLATE 2B48-F7446-00
Required: 1
PLATE 2
Price unavailable
-10%
Button head bolt
39
Yamaha Motors
Button head bolt92012-06020-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
FOOTREST, REAR 1
41
Yamaha Motors
FOOTREST, REAR 1B48-F7431-00
Required: 1
FOOTREST, REAR 1
Price unavailable
FOOTREST, REAR 2
42
Yamaha Motors
FOOTREST, REAR 2B48-F7441-00
Required: 1
FOOTREST, REAR 2
Price unavailable
-10%
Compression Spring
43
Yamaha Motors
Compression Spring90501-12743-00
Required: 2
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
BALL
44
Yamaha Motors
BALL93501-04843
Required: 2
BALL
Price unavailable
-10%
CLEVIS PIN
45
Yamaha Motors
CLEVIS PIN91701-08035-00
Required: 2
PIN
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
BRACKET 4
47
Yamaha Motors
BRACKET 4B48-F741L-00
Required: 1
BRACKET 4
Price unavailable
BRACKET 5
48
Yamaha Motors
BRACKET 5B48-F742L-00
Required: 1
BRACKET 5
Price unavailable
-10%
COLLAR (JUPITER-Z T1)
50
Yamaha Motors
COLLAR (JUPITER-Z T1)90387-08812-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
DAMPER, MUFFLER
51
Yamaha Motors
DAMPER, MUFFLER5TN-E4747-00
Required: 1
DAMPER, MUFFLER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
