2017 Street Bike TFX150 - TFX150 (BY72) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

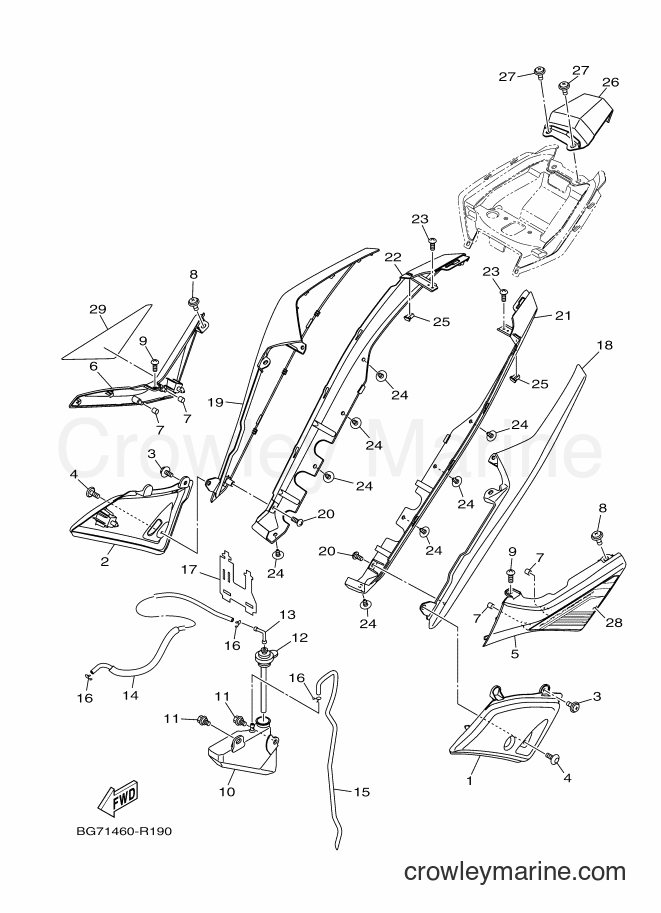

Yamaha Motors TFX150 (BY72) [010] - SIDE COVER
Change View:
COVER 3
1
Yamaha Motors
COVER 3BG7-F2856-00
Required: 1
COVER 3
Price unavailable
COVER 4
2
Yamaha Motors
COVER 4BG7-F2857-00
Required: 1
COVER 4
Price unavailable
SCREW, WITH WASHER
3
Yamaha Motors
SCREW, WITH WASHER90159-06860
Required: 2
SCREW, WITH WASHER
Price unavailable
BOLT,HEX. SOCKET BUTTON
4
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06856
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
COVER, SIDE 1
5
Yamaha Motors
COVER, SIDE 1BG7-F1711-00-P2
Required: 1
COVER, SIDE 1
Price unavailable
COVER, SIDE 2
6
Yamaha Motors
COVER, SIDE 2BG7-F1721-00-P2
Required: 1
COVER, SIDE 2
Price unavailable
DAMPER, LOCATING 1
7
Yamaha Motors
DAMPER, LOCATING 13XA-F622F-00
Required: 4
DAMPER, LOCATING 1
Price unavailable
SCREW, WITH WASHER
8
Yamaha Motors
SCREW, WITH WASHER90159-06860
Required: 2
SCREW, WITH WASHER
Price unavailable
TANK, RECOVERY
10
Yamaha Motors
TANK, RECOVERY2FB-F1871-00
Required: 1
TANK, RECOVERY
Price unavailable
-10%
BOLT
11
Yamaha Motors
BOLT90109-06212-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
CAP
12
Yamaha Motors
CAP20P-F1875-00
Required: 1
CAP
Price unavailable
CAP
12
Yamaha Motors
CAP3C1-F1875-00
Required: 1
CAP
Price unavailable
-10%
Elbow
13
Yamaha Motors
Elbow26H-21828-00-00
Required: 1
ELBOW
Supersedes: 3C1-F1828-00-00
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details
HOSE
14
Yamaha Motors
HOSE90445-08831
Required: 1
HOSE
Price unavailable
HOSE
15
Yamaha Motors
HOSE90445-08832
Required: 1
HOSE
Price unavailable
-10%
Scissor Clip
16
Yamaha Motors
Scissor Clip90467-08003-00
Required: 3
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
CLAMP, HOSE
17
Yamaha Motors
CLAMP, HOSE2PK-F1823-00
Required: 1
CLAMP, HOSE
Price unavailable
CLAMP, HOSE
17
Yamaha Motors
CLAMP, HOSE20P-F1823-00
Required: 1
CLAMP, HOSE
Price unavailable
COVER, SIDE 3
18
Yamaha Motors
COVER, SIDE 3BG7-F1731-00-P3
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 4
19
Yamaha Motors
COVER, SIDE 4BG7-F1741-00-P3
Required: 1
COVER, SIDE 4
Price unavailable
-10%
Tapping Screw
20
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
MOLE, SIDE COVER 3
21
Yamaha Motors
MOLE, SIDE COVER 3BG7-F171N-00
Required: 1
MOLE, SIDE COVER 3
Price unavailable
MOLE, SIDE COVER 4
22
Yamaha Motors
MOLE, SIDE COVER 4BG7-F171R-00
Required: 1
MOLE, SIDE COVER 4
Price unavailable
-10%
Tapping Screw
23
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
RIVET
24
Yamaha Motors
RIVET90269-06815
Required: 8
RIVET
Price unavailable
CLAMP
25
Yamaha Motors
CLAMP90464-04801
Required: 2
CLAMP
Price unavailable
COVER, SIDE 5
26
Yamaha Motors
COVER, SIDE 5BG7-F171E-01
Required: 1
COVER, SIDE 5
Price unavailable
SCREW, WITH WASHER
27
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
GRAPHIC 1
28
Yamaha Motors
GRAPHIC 1BG7-F173E-30
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
29
Yamaha Motors
GRAPHIC 2BG7-F173F-30
Required: 1
GRAPHIC 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
