2017 Street Bike VXN150 - VXN150 (BK82) [010] COWLING 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

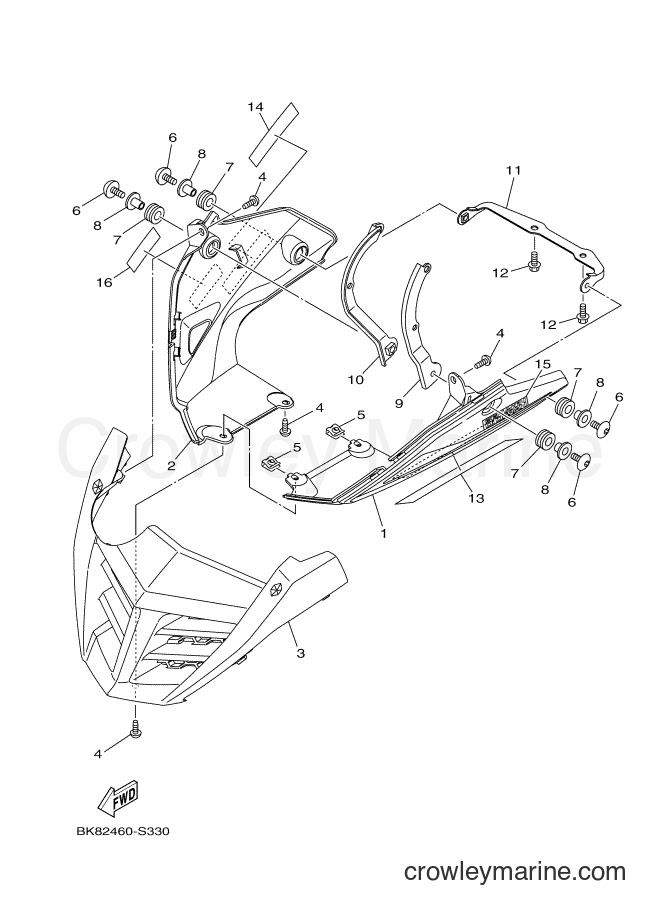

Yamaha Motors VXN150 (BK82) [010] - COWLING 1
Change View:
COVER, UNDER
1
Yamaha Motors
COVER, UNDER2TP-F8385-00-P9
Required: 1
COVER, UNDER
Price unavailable
COVER, UNDER 2
2
Yamaha Motors
COVER, UNDER 22TP-F8395-00-P9
Required: 1
COVER, UNDER 2
Price unavailable
COVER, UNDER 3
3
Yamaha Motors
COVER, UNDER 32TP-F837D-00
Required: 1
COVER, UNDER 3
Price unavailable
-10%
Truss Screw
4
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TAPPING
Supersedes: 97702-50014-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
BOLT,HEX. SOCKET BUT
6
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-06137-00
Required: 4
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
GROMMET
7
Yamaha Motors
GROMMET90480-12805
Required: 4
GROMMET
Price unavailable
COLLAR
8
Yamaha Motors
COLLAR90387-06803
Required: 4
COLLAR
Price unavailable
BRACKET, POUCH
9
Yamaha Motors
BRACKET, POUCH2TP-F8283-00
Required: 1
BRACKET, POUCH
Price unavailable
BRACKET, UNDER
10
Yamaha Motors
BRACKET, UNDER2TP-F8284-00
Required: 1
BRACKET, UNDER
Price unavailable
BRACKET, UNDER 3
11
Yamaha Motors
BRACKET, UNDER 32TP-F8285-00
Required: 1
BRACKET, UNDER 3
Price unavailable
-10%
Flange Bolt
12
Yamaha Motors
Flange Bolt95817-08014-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08014-00
Cross Ship
Leaves in 2-5 days
$2.50
$2.25
You save $0.25
More details
GRAPHIC 5
13
Yamaha Motors
GRAPHIC 5BK8-F8398-00
Required: 1
GRAPHIC 5
Price unavailable
GRAPHIC 6
14
Yamaha Motors
GRAPHIC 6BK8-F8399-00
Required: 1
GRAPHIC 6
Price unavailable
GRAPHIC 7
15
Yamaha Motors
GRAPHIC 7BK8-F839A-00
Required: 1
GRAPHIC 7
Price unavailable
GRAPHIC 8
16
Yamaha Motors
GRAPHIC 8BK8-F839E-00
Required: 1
GRAPHIC 8
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
