2017 Street Bike VXN150 - VXN150 (BK82) [010] RADIATOR & HOSE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

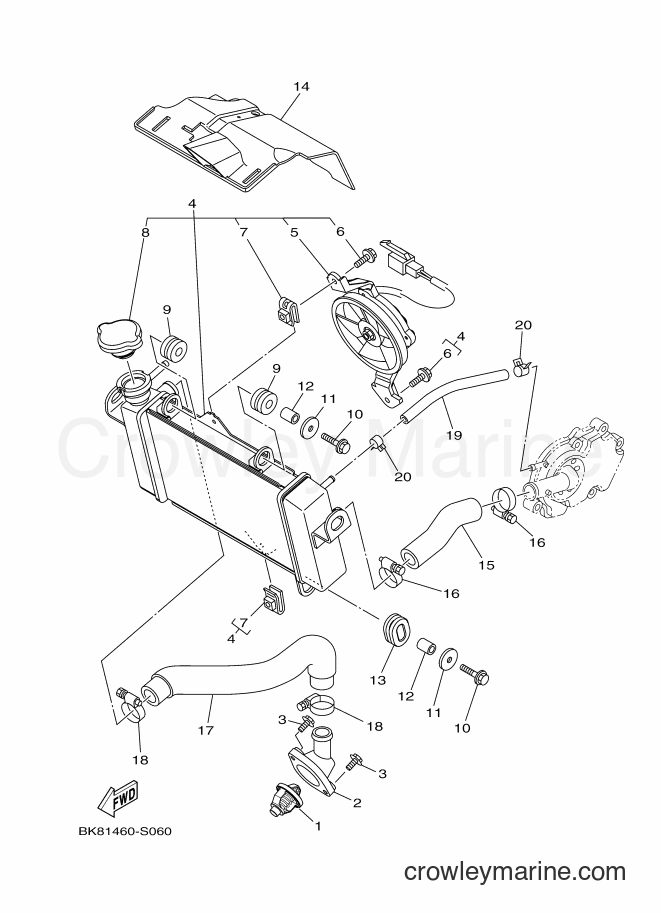

Yamaha Motors VXN150 (BK82) [010] - RADIATOR & HOSE
Change View:
THERMOSTAT
1
Yamaha Motors
THERMOSTATB48-E2411-00
Required: 1
THERMOSTAT
Price unavailable
COVER, THERMOSTAT
2
Yamaha Motors
COVER, THERMOSTAT1S7-E2413-00
Required: 1
COVER, THERMOSTAT
Price unavailable
-10%
Flange Bolt
3
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.51
You save $0.39
More details
RADIATOR ASSY
4
Yamaha Motors
RADIATOR ASSYBK8-E2460-00
Required: 1
RADIATOR ASSY
Price unavailable
. BLOWER ASSY
5
Yamaha Motors
. BLOWER ASSYBG7-E2405-00
Required: 1
. BLOWER ASSY
Price unavailable
-10%
Blower Holding Bolt
6
Yamaha Motors
Blower Holding Bolt5YP-E2675-00-00
Required: 2
. BOLT, BLOWER HOLDING
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
. NUT 1
7
Yamaha Motors
. NUT 15YP-E2671-00
Required: 2
. NUT 1
Price unavailable
. CONDUCTION ASSY
8
Yamaha Motors
. CONDUCTION ASSY5P0-E2590-00
Required: 1
. CONDUCTION ASSY
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-15363-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
DEEP FLANGE BOLT
10
Yamaha Motors
DEEP FLANGE BOLT95D32-06025-00
Required: 2
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$1.15
$1.04
You save $0.11
More details
WASHER, PLATE
11
Yamaha Motors
WASHER, PLATE90201-06880
Required: 2
WASHER, PLATE
Price unavailable
-10%
COLLAR
12
Yamaha Motors
COLLAR90387-06144-00
Required: 2
COLLAR
Supersedes: 90387-064W3-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
COLLAR
12
Yamaha Motors
COLLAR90387-06144-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
COVER, RADIATOR
14
Yamaha Motors
COVER, RADIATOR2TP-E2467-00
Required: 1
COVER, RADIATOR
Price unavailable
PIPE 1
15
Yamaha Motors
PIPE 13C1-E2481-00
Required: 1
PIPE 1
Price unavailable
HOSE CLAMP ASSY
16
Yamaha Motors
HOSE CLAMP ASSY90450-27805
Required: 2
HOSE CLAMP ASSY
Price unavailable
PIPE 2
17
Yamaha Motors
PIPE 23C1-E2482-00
Required: 1
PIPE 2
Price unavailable
HOSE CLAMP ASSY
18
Yamaha Motors
HOSE CLAMP ASSY90450-27805
Required: 2
HOSE CLAMP ASSY
Price unavailable
HOSE
19
Yamaha Motors
HOSE90445-12804
Required: 1
HOSE
Price unavailable
CLIP
20
Yamaha Motors
CLIP90467-10805
Required: 2
CLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
