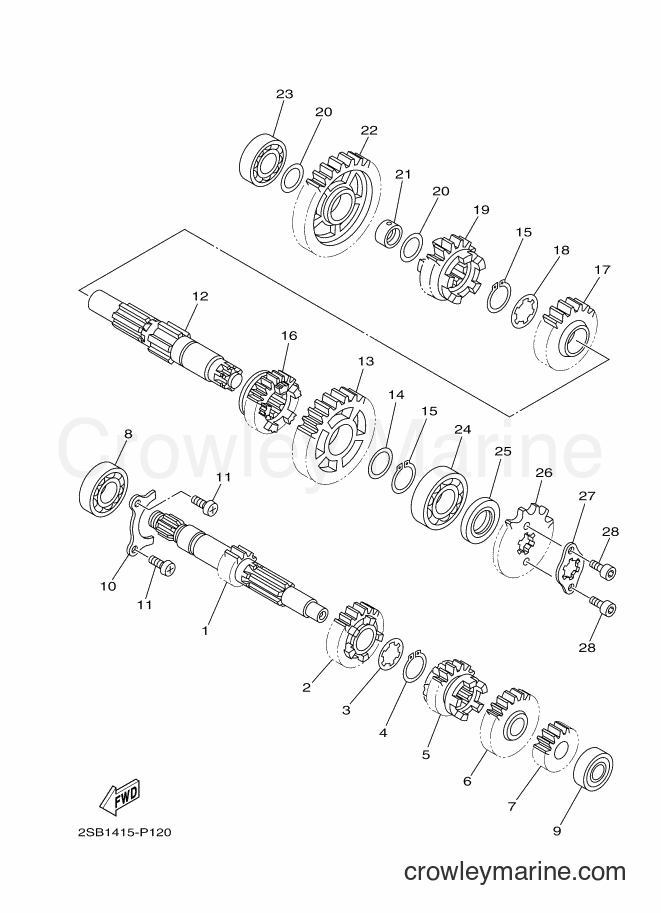

2017 Street Bike YS125-5C - YS125-5C (BT41) [010] TRANSMISSION diagram
![Yamaha Motors YS125-5C (BT41) [010] - TRANSMISSION](https://cdn.crowleymarine.com/yamaha/P5HcP2vZ.png)
1
Yamaha Motors
AXLE, MAIN (14T)2SB-E7411-00
Required: 1
AXLE, MAIN (14T)
Price unavailable
2
Yamaha Motors
GEAR, 4TH PINION (22T)2SB-E7141-00
Required: 1
GEAR, 4TH PINION (22T)
Price unavailable
-10%
$9.44
You save $1.05
-10%
4
Yamaha Motors
S -type Circlip93410-20038-00
Required: 1
CIRCLIP
Supersedes: 93410-20809-00
$3.65
You save $0.40
5
Yamaha Motors
GEAR, 3RD PINION (22T)2SB-E7131-00
Required: 1
GEAR, 3RD PINION (22T)
Price unavailable
6
Yamaha Motors
GEAR, 5TH PINION (24T)2SB-E7151-00
Required: 1
GEAR, 5TH PINION (24T)
Price unavailable
7
Yamaha Motors
GEAR, 2ND PINION (19T)2SB-E7121-00
Required: 1
GEAR, 2ND PINION (19T)
Price unavailable
8
Yamaha Motors
BEARING93306-054YD
Required: 1
BEARING
Price unavailable
-10%
9
Yamaha Motors
BEARING93306-20121-00
Required: 1
BEARING
Supersedes: 93306-201Y8-00
$35.99
You save $4.00
10
Yamaha Motors
PLATE, COVER2SB-E7471-00
Required: 1
PLATE, COVER
Price unavailable
-10%
11
Yamaha Motors
Pan Head Screw98512-06012-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
12
Yamaha Motors
AXLE, DRIVE2SB-E7421-00
Required: 1
AXLE, DRIVE
Price unavailable
13
Yamaha Motors
GEAR, 2ND WHEEL (34T)2SB-E7221-00
Required: 1
GEAR, 2ND WHEEL (34T)
Price unavailable
-10%
14
Yamaha Motors
Plate Washer90201-22793-00
Required: 1
WASHER, PLATE
$7.64
You save $0.85
15
Yamaha Motors
CIRCLIP93410-22820
Required: 2
CIRCLIP
Price unavailable
16
Yamaha Motors
GEAR, 5TH WHEEL (21T)2SB-E7251-00
Required: 1
GEAR, 5TH WHEEL (21T)
Price unavailable
17
Yamaha Motors
GEAR, 3RD WHEEL (29T)2SB-E7231-00
Required: 1
GEAR, 3RD WHEEL (29T)
Price unavailable
-10%
$8.54
You save $0.95
19
Yamaha Motors
GEAR, 4TH WHEEL (23T)2SB-E7241-00
Required: 1
GEAR, 4TH WHEEL (23T)
Price unavailable
-10%
20
Yamaha Motors
Plate Washer90201-177G4-00
Required: 2
WASHER, PLATE
Supersedes: 90201-178D3-00
$9.44
You save $1.05
21
Yamaha Motors
COLLAR 12SB-E7258-00
Required: 1
COLLAR 1
Price unavailable
22
Yamaha Motors
GEAR, 1ST WHEEL (38T)2SB-E7211-00
Required: 1
GEAR, 1ST WHEEL (38T)
Price unavailable
23
Yamaha Motors
BEARING93306-203XM
Required: 1
BEARING
Price unavailable
24
Yamaha Motors
BEARING93306-272X8
Required: 1
BEARING
Price unavailable
25
Yamaha Motors
OIL SEAL93102-22828
Required: 1
OIL SEAL
Price unavailable
26
Yamaha Motors
SPROCKET,DRIVE (14T)93823-14821
Required: 1
SPROCKET,DRIVE (14T)
Price unavailable
27
Yamaha Motors
HOLDER, SPROCKET2SB-E7456-00
Required: 1
HOLDER, SPROCKET
Price unavailable
-10%
$5.84
You save $0.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
