2017 Street Bike YZF155 - YZF155 (B9B2) [010] CAMSHAFT & CHAIN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

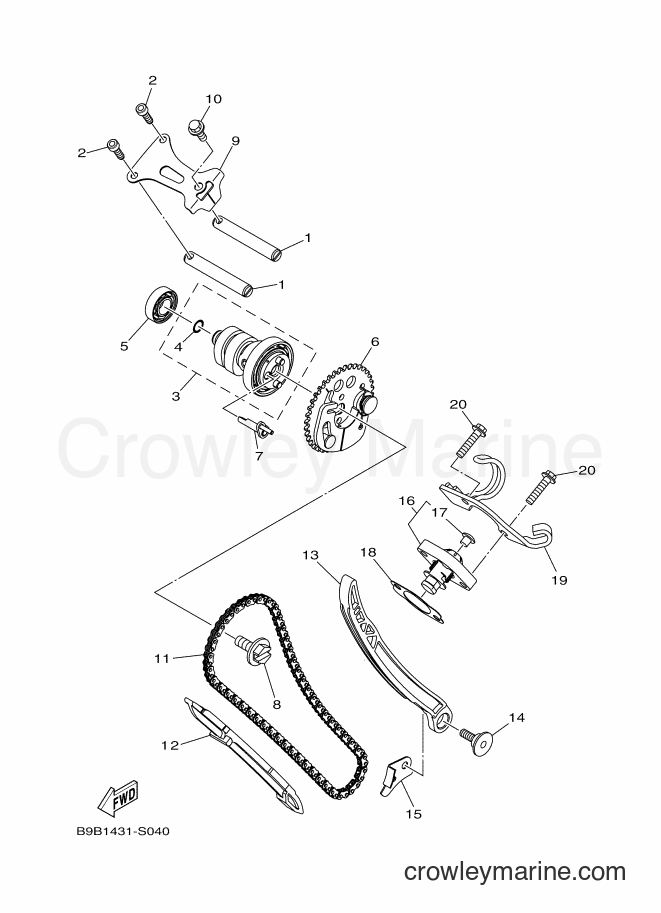

Yamaha Motors YZF155 (B9B2) [010] - CAMSHAFT & CHAIN
Change View:
SHAFT, ROCKER 2
1
Yamaha Motors
SHAFT, ROCKER 221C-E2156-00
Required: 2
SHAFT, ROCKER 2
Price unavailable
-10%
Socket Bolt
2
Yamaha Motors
Socket Bolt91317-05016-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 91312-05016-00
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
CAMSHAFT ASSY 1
3
Yamaha Motors
CAMSHAFT ASSY 1BK6-E2170-00
Required: 1
CAMSHAFT ASSY 1
Price unavailable
. O-RING
4
Yamaha Motors
. O-RING93210-09806
Required: 1
. O-RING
Price unavailable
BEARING
5
Yamaha Motors
BEARING93306-001YJ
Required: 1
BEARING
Price unavailable
DECOMPRESSION ASSY
6
Yamaha Motors
DECOMPRESSION ASSYBK6-E2280-00
Required: 1
DECOMPRESSION ASSY
Price unavailable
CAM, DECOMPRESSION
7
Yamaha Motors
CAM, DECOMPRESSIONBK6-E2288-00
Required: 1
CAM, DECOMPRESSION
Price unavailable
BOLT
8
Yamaha Motors
BOLT5YP-E2157-00
Required: 1
BOLT
Price unavailable
PLATE
9
Yamaha Motors
PLATE2DP-E111F-00
Required: 1
PLATE
Price unavailable
-10%
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.40
$3.06
You save $0.34
More details
CHAIN
11
Yamaha Motors
CHAIN94568-J9096
Required: 1
CHAIN
Price unavailable
GUIDE, STOPPER 1
12
Yamaha Motors
GUIDE, STOPPER 1B65-E2231-00
Required: 1
GUIDE, STOPPER 1
Price unavailable
GUIDE, STOPPER 2
13
Yamaha Motors
GUIDE, STOPPER 2BK6-E2241-00
Required: 1
GUIDE, STOPPER 2
Price unavailable
BOLT
14
Yamaha Motors
BOLT54P-E2228-00
Required: 1
BOLT
Price unavailable
COVER, CHAIN
15
Yamaha Motors
COVER, CHAINBK6-E2256-00
Required: 1
COVER, CHAIN
Price unavailable
TENSIONER ASSY, CAM CHAIN
16
Yamaha Motors
TENSIONER ASSY, CAM CHAIN2ND-E2210-10
Required: 1
TENSIONER ASSY, CAM CHAIN
Price unavailable
. PLUG
17
Yamaha Motors
. PLUG5MX-E2222-00
Required: 1
. PLUG
Price unavailable
GASKET, TENSIONER CASE
18
Yamaha Motors
GASKET, TENSIONER CASEBK6-E2213-00
Required: 1
GASKET, TENSIONER CASE
Price unavailable
HOLDER, CLUTCH CABLE
19
Yamaha Motors
HOLDER, CLUTCH CABLEBK6-E5441-00
Required: 1
HOLDER, CLUTCH CABLE
Price unavailable
-10%
Flange Bolt
20
Yamaha Motors
Flange Bolt95022-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.71
You save $0.19
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
