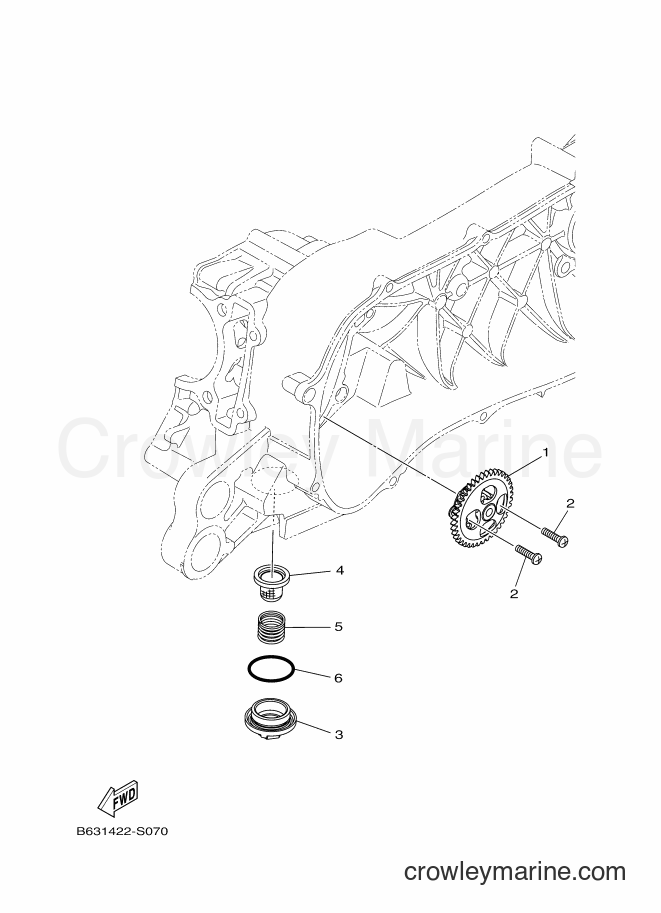

2018 Street Bike GDR155 - GDR155 (B65E) [010] OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GDR155 (B65E) [010] - OIL PUMP
Change View:
OIL PUMP ASSY
1
Yamaha Motors
OIL PUMP ASSYB65-E3300-01
Required: 1
OIL PUMP ASSY
Price unavailable
Pan Head Screw
2
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05020-00
Cross Ship
Leaves in 2-5 days
$3.15
More details
PLUG, DRAIN
3
Yamaha Motors
PLUG, DRAIN54P-E5351-00
Required: 1
PLUG, DRAIN
Price unavailable
STRAINER, OIL
4
Yamaha Motors
STRAINER, OIL54P-E3411-00
Required: 1
STRAINER, OIL
Price unavailable
Compression Spring
5
Yamaha Motors
Compression Spring90501-16004-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$1.18
More details
O-Ring
6
Yamaha Motors
O-Ring93210-29800-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$0.47
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
