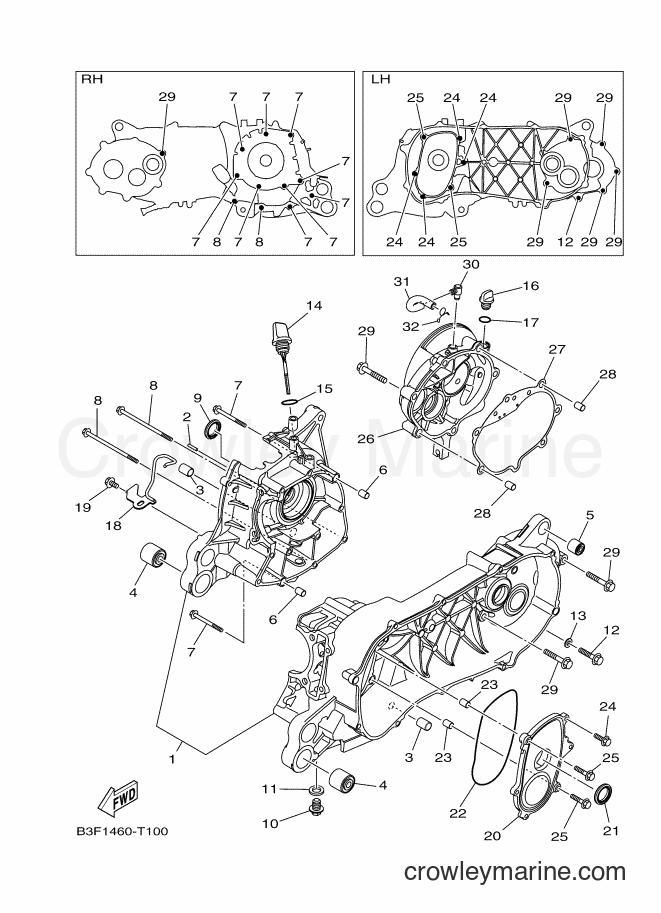

2018 Street Bike GDS125-I - GDS125-I (B3F1) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GDS125-I (B3F1) [010] - CRANKCASE
Change View:
CRANKCASE ASSY
1
Yamaha Motors
CRANKCASE ASSYB65-E5150-00
Required: 1
CRANKCASE ASSY
Price unavailable
PIN
2
Yamaha Motors
PIN99480-03012
Required: 1
PIN
Price unavailable
BUSH
3
Yamaha Motors
BUSH1GC-F7121-00
Required: 2
BUSH
Price unavailable
DAMPER
4
Yamaha Motors
DAMPER90388-10808
Required: 2
DAMPER
Price unavailable
BUSH, REAR SHOCK ABSORBER
5
Yamaha Motors
BUSH, REAR SHOCK ABSORBER4D1-F2216-00
Required: 1
BUSH, REAR SHOCK ABSORBER
Price unavailable
-10%
DOWEL PIN (5D21)
6
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
-10%
DEEP FLANGE BOLT
7
Yamaha Motors
DEEP FLANGE BOLT95E32-06060-00
Required: 9
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.95
$0.85
You save $0.09
More details
BOLT, FLANGE DEEP RECESS
8
Yamaha Motors
BOLT, FLANGE DEEP RECESS95E32-06110
Required: 2
BOLT, FLANGE DEEP RECESS
Price unavailable
OIL SEAL
9
Yamaha Motors
OIL SEAL93102-22829
Required: 1
OIL SEAL
Price unavailable
PLUG, STRAIGHT SCREW
10
Yamaha Motors
PLUG, STRAIGHT SCREW90340-12816
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
GASKET
11
Yamaha Motors
GASKET90430-12803
Required: 1
GASKET
Price unavailable
BOLT, FLANGE DEEP RECESS
12
Yamaha Motors
BOLT, FLANGE DEEP RECESS95D32-08035
Required: 1
BOLT, FLANGE DEEP RECESS
Price unavailable
GASKET
13
Yamaha Motors
GASKET90430-08804
Required: 1
GASKET
Price unavailable
PLUG, OIL LEVEL
14
Yamaha Motors
PLUG, OIL LEVEL2DP-E5362-00
Required: 1
PLUG, OIL LEVEL
Price unavailable
O-RING
15
Yamaha Motors
O-RING5LW-E3769-00
Required: 1
O-RING
Price unavailable
-10%
OIL PLUG (5MX1)
16
Yamaha Motors
OIL PLUG (5MX1)5LW-E5363-00-00
Required: 1
PLUG, OIL
Cross Ship
Leaves in 2-5 days
$3.50
$3.15
You save $0.35
More details
-10%
O-Ring (44D1)
17
Yamaha Motors
O-Ring (44D1)93210-14816-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$3.50
$3.15
You save $0.35
More details
BRACKET
18
Yamaha Motors
BRACKETB65-E5199-00
Required: 1
BRACKET
Price unavailable
-10%
DEEP FLANGE BOLT
19
Yamaha Motors
DEEP FLANGE BOLT95E32-06012-00
Required: 1
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$1.10
$0.99
You save $0.11
More details
COVER 2
20
Yamaha Motors
COVER 2B65-E5423-00
Required: 1
COVER 2
Price unavailable
OIL SEAL
21
Yamaha Motors
OIL SEAL93102-24802
Required: 1
OIL SEAL
Price unavailable
O-RING
22
Yamaha Motors
O-RING93211-28800
Required: 1
O-RING
Price unavailable
-10%
DOWEL PIN (5D21)
23
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
-10%
DEEP FLANGE BOLT
25
Yamaha Motors
DEEP FLANGE BOLT95E32-06030-00
Required: 2
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.80
$0.72
You save $0.08
More details
COVER, CRANKCASE 2
26
Yamaha Motors
COVER, CRANKCASE 2B65-E5421-00
Required: 1
COVER, CRANKCASE 2
Price unavailable
GASKET, CRANKCASE COVER 2
27
Yamaha Motors
GASKET, CRANKCASE COVER 2B65-E5461-00
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
-10%
DOWEL PIN (5D21)
28
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
BOLT, FLANGE DEEP RECESS
29
Yamaha Motors
BOLT, FLANGE DEEP RECESS95E32-08045
Required: 6
BOLT, FLANGE DEEP RECESS
Price unavailable
BREATHER
30
Yamaha Motors
BREATHER5LW-E5371-01
Required: 1
BREATHER
Price unavailable
PIPE, BREATHER
31
Yamaha Motors
PIPE, BREATHERB65-E5373-00
Required: 1
PIPE, BREATHER
Price unavailable
Clip
32
Yamaha Motors
Clip90467-11825-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$0.99
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
