2018 Street Bike GDS125-F - GDS125-F (B3F2) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

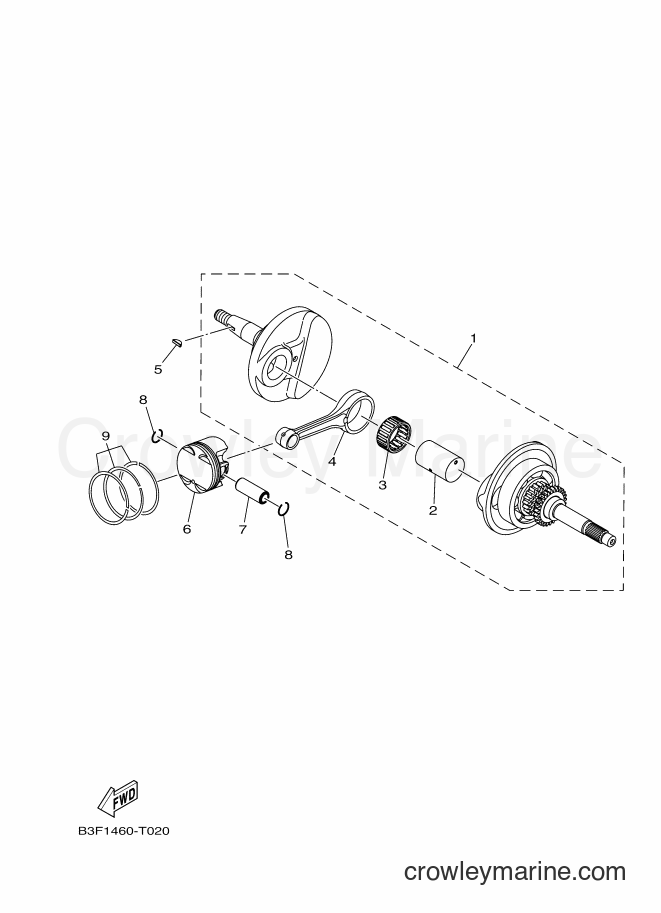

Yamaha Motors GDS125-F (B3F2) [010] - CRANKSHAFT & PISTON

Change View:

Yamaha Motors

CRANKSHAFT ASSYB3F-E1400-00

Required: 1

CRANKSHAFT ASSY

Price unavailable

Yamaha Motors

. PIN, CRANK 1B3F-E1681-00

Required: 1

. PIN, CRANK 1

Price unavailable

Yamaha Motors

. BEARING93310-528YK

Required: 1

. BEARING

Price unavailable

Yamaha Motors

. ROD, CONNECTINGB3F-E1651-00

Required: 1

. ROD, CONNECTING

Price unavailable

-10%

Yamaha Motors

Woodruff Key90280-03017-00

Required: 1

KEY, WOODRUFF

~~$8.49~~

$7.64

You save $0.85

More details

Yamaha Motors

PISTON (STD)2DS-E1631-00

Required: 1

PISTON (STD)

Price unavailable

Yamaha Motors

PIN, PISTON2DP-E1633-00

Required: 1

PIN, PISTON

Price unavailable

-10%

Yamaha Motors

Inner Circle Clip93450-16115-00

Required: 2

CIRCLIP

~~$4.20~~

$3.78

You save $0.42

More details

Yamaha Motors

PISTON RING SET (STD)B64-E1603-00

Required: 1

PISTON RING SET (STD)

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
