2018 Street Bike LNB125-F - LNB125-F (BJ77) [010] SEAT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

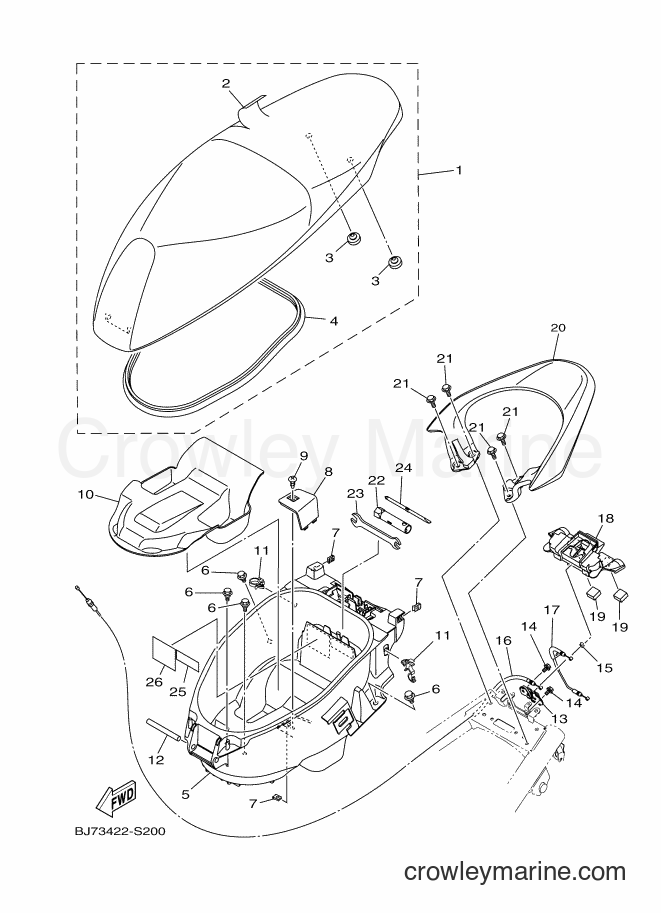

Yamaha Motors LNB125-F (BJ77) [010] - SEAT 2
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSYBJ7-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. SEAT COVER COMP.
2
Yamaha Motors
. SEAT COVER COMP.BJ7-F470F-00
Required: 1
. SEAT COVER COMP.
Price unavailable
. PAD, SEAT
3
Yamaha Motors
. PAD, SEATBJ7-F4741-00
Required: 2
. PAD, SEAT
Price unavailable
. SEAL
4
Yamaha Motors
. SEALBJ7-F475M-00
Required: 1
. SEAL
Price unavailable
BOX 1
5
Yamaha Motors
BOX 1BJ7-F473R-00
Required: 1
BOX 1
Price unavailable
BOLT
6
Yamaha Motors
BOLT90109-068B4
Required: 4
BOLT
Price unavailable
CAP
8
Yamaha Motors
CAPBJ7-F482H-00
Required: 1
CAP
Price unavailable
DAMPER, SEAT
10
Yamaha Motors
DAMPER, SEATBJ7-F4724-00
Required: 1
DAMPER, SEAT
Price unavailable
-10%
Clamp
11
Yamaha Motors
Clamp90464-16006-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
PIN, SEAT FITTING
12
Yamaha Motors
PIN, SEAT FITTING1FC-F4727-00
Required: 1
PIN, SEAT FITTING
Price unavailable
SEAT LOCK ASSY
13
Yamaha Motors
SEAT LOCK ASSYB63-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
-10%
DEEP FLANGE BOLT
14
Yamaha Motors
DEEP FLANGE BOLT95E32-06010-00
Required: 2
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.95
$0.85
You save $0.09
More details
STOPPER
15
Yamaha Motors
STOPPER1SK-F4768-00
Required: 1
STOPPER
Price unavailable
CABLE, SEAT LOCK
16
Yamaha Motors
CABLE, SEAT LOCKBJ7-F478E-30
Required: 1
CABLE, SEAT LOCK
Price unavailable
WIRE, SEAT LOCK 2
17
Yamaha Motors
WIRE, SEAT LOCK 2B63-F479D-00
Required: 1
WIRE, SEAT LOCK 2
Price unavailable
COVER, SEAT LOCK
18
Yamaha Motors
COVER, SEAT LOCKBJ7-F472T-00
Required: 1
COVER, SEAT LOCK
Price unavailable
DAMPER, PLATE
19
Yamaha Motors
DAMPER, PLATE90520-10030
Required: 2
DAMPER, PLATE
Price unavailable
HANDLE, SEAT
20
Yamaha Motors
HANDLE, SEATBJ7-F4773-00-P0
Required: 1
HANDLE, SEAT
Price unavailable
-10%
DEEP FLANGE BOLT
21
Yamaha Motors
DEEP FLANGE BOLT95D32-06020-00
Required: 4
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$1.35
$1.22
You save $0.14
More details
BOX, SPARK PLUG
22
Yamaha Motors
BOX, SPARK PLUG2BM-F814F-00
Required: 1
BOX, SPARK PLUG
Price unavailable
SPANNER
23
Yamaha Motors
SPANNER5HU-F8123-00
Required: 1
SPANNER
Price unavailable
DRIVER
24
Yamaha Motors
DRIVER5HU-F8152-00
Required: 1
DRIVER
Price unavailable
LABEL, TIRE
25
Yamaha Motors
LABEL, TIRE2BM-F1668-00
Required: 1
LABEL, TIRE
Price unavailable
OIL, LABEL
26
Yamaha Motors
OIL, LABEL2BM-F178B-00
Required: 1
OIL, LABEL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
