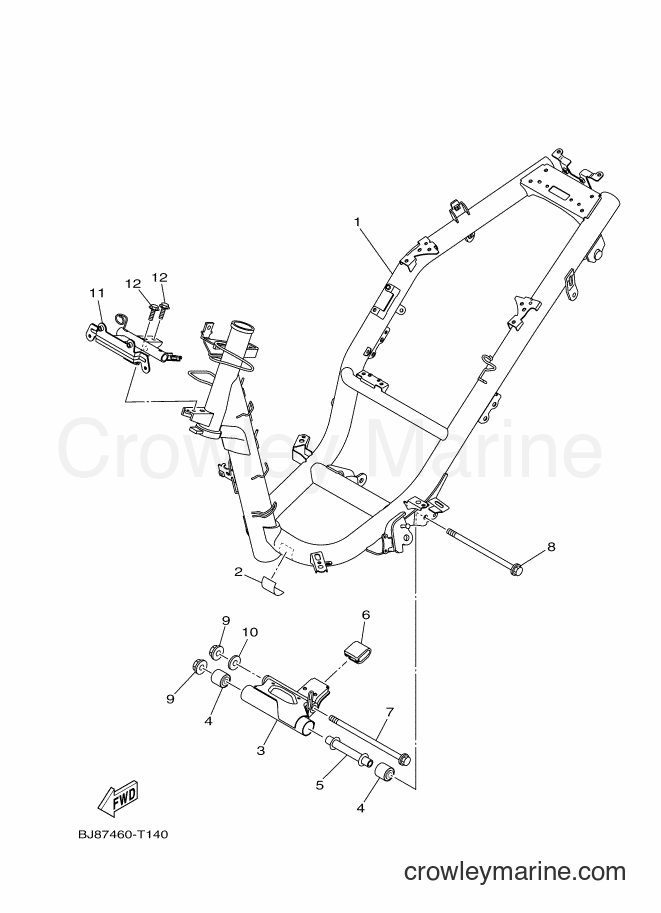

2018 Street Bike LNC125 - LNC125 (BJ87) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNC125 (BJ87) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.BT2-F1110-10
Required: 1
FRAME COMP.
Price unavailable
-10%
Shift Bracket Seal
2
Yamaha Motors
Shift Bracket Seal5D9-F414G-00-00
Required: 1
SEAL
Cross Ship
Leaves in 2-5 days
$1.70
$1.53
You save $0.17
More details
ENGINE BRACKET COMP.
3
Yamaha Motors
ENGINE BRACKET COMP.2PH-F1410-20
Required: 1
ENGINE BRACKET COMP.
Price unavailable
DAMPER
4
Yamaha Motors
DAMPER90388-10800
Required: 2
DAMPER
Price unavailable
SPACER
5
Yamaha Motors
SPACER54P-F1459-00
Required: 1
SPACER
Price unavailable
STOPPER, MAIN STAND
6
Yamaha Motors
STOPPER, MAIN STAND2PH-F7114-00
Required: 1
STOPPER, MAIN STAND
Price unavailable
BOLT, FLANGE
7
Yamaha Motors
BOLT, FLANGE90105-108B2
Required: 1
BOLT, FLANGE
Price unavailable
SHAFT, PIVOT
8
Yamaha Motors
SHAFT, PIVOT54P-F2141-00
Required: 1
SHAFT, PIVOT
Price unavailable
-10%
Self Locking Nut
9
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 2
NUT, S/L FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.43
You save $0.27
More details
-10%
Plate Washer
10
Yamaha Motors
Plate Washer92907-10600-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
STAY 1
11
Yamaha Motors
STAY 1BJ8-F8356-00
Required: 1
STAY 1
Price unavailable
-10%
DEEP FLANGE BOLT
12
Yamaha Motors
DEEP FLANGE BOLT95D02-06010-00
Required: 2
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.45
$0.40
You save $0.04
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
