2018 Street Bike LNC125-I - LNC125-I (BT22) [010] STEERING diagram

Reference numbers in this diagram are listed below ā€” scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. šŸ–Ø Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

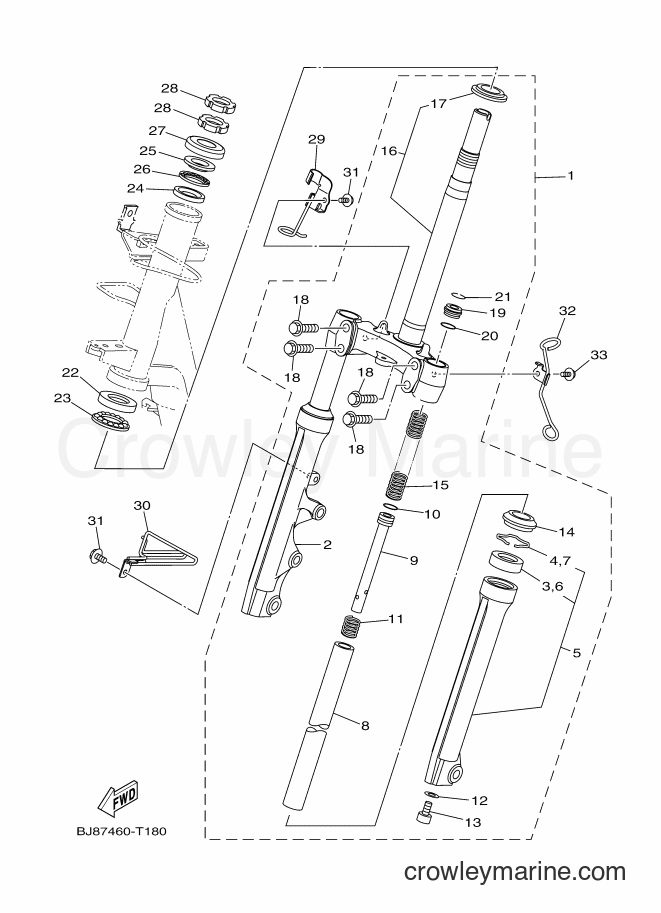

Yamaha Motors LNC125-I (BT22) [010] - STEERING
Change View:
FRONT FORK ASSY
1
Yamaha Motors
FRONT FORK ASSY2SX-F3100-10
Required: 1
FRONT FORK ASSY
Price unavailable
. TUBE, OUTER 2
2
Yamaha Motors
. TUBE, OUTER 2BJ7-F3136-00
Required: 1
. TUBE, OUTER 2
Price unavailable
. . OIL SEAL
3
Yamaha Motors
. . OIL SEAL3AY-F3145-00
Required: 1
. . OIL SEAL
Price unavailable
. . RING, SNAP
4
Yamaha Motors
. . RING, SNAP5P0-F3156-00
Required: 1
. . RING, SNAP
Price unavailable
. TUBE, OUTER (L.H)
5
Yamaha Motors
. TUBE, OUTER (L.H)BJ7-F3126-00
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
. . OIL SEAL
6
Yamaha Motors
. . OIL SEAL3AY-F3145-00
Required: 1
. . OIL SEAL
Price unavailable
. . RING, SNAP
7
Yamaha Motors
. . RING, SNAP5P0-F3156-00
Required: 1
. . RING, SNAP
Price unavailable
. INNER TUBE COMP.1
8
Yamaha Motors
. INNER TUBE COMP.154P-F3110-10
Required: 2
. INNER TUBE COMP.1
Price unavailable
. CYLINDER COMP., FRONT FORK
9
Yamaha Motors
. CYLINDER COMP., FRONT FORK2PH-F3170-00
Required: 2
. CYLINDER COMP., FRONT FORK
Price unavailable
. RING, PISTON
10
Yamaha Motors
. RING, PISTON2JG-F3157-00
Required: 2
. RING, PISTON
Price unavailable
. SPRING, SUB
11
Yamaha Motors
. SPRING, SUB5NM-F3152-00
Required: 2
. SPRING, SUB
Price unavailable
-10%
Tank Cap Gasket
12
Yamaha Motors
Tank Cap Gasket2BU-F3158-00-00
Required: 2
. GASKET
Cross Ship
Leaves in 2-5 days
$3.65
$3.29
You save $0.36
More details
. BOLT, HEXAGON SOCKET HEAD
13
Yamaha Motors
. BOLT, HEXAGON SOCKET HEAD278-F3181-50
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
. SEAL, DUST
14
Yamaha Motors
. SEAL, DUST5LM-F3144-00
Required: 2
. SEAL, DUST
Price unavailable
. SPRING, FRONT FORK
15
Yamaha Motors
. SPRING, FRONT FORK2PH-F3141-00
Required: 2
. SPRING, FRONT FORK
Price unavailable
. UNDER BRACKET COMP.
16
Yamaha Motors
. UNDER BRACKET COMP.2SX-F3340-00
Required: 1
. UNDER BRACKET COMP.
Price unavailable
-10%
BALL RACE
17
Yamaha Motors
BALL RACE4FP-F3411-10-00
Required: 1
. . RACE, BALL 1
Cross Ship
Leaves in 2-5 days
$26.99
$24.29
You save $2.70
More details
. BOLT 1
18
Yamaha Motors
. BOLT 14D0-F3346-00
Required: 4
. BOLT 1
Price unavailable
. BOLT, CAP
19
Yamaha Motors
. BOLT, CAP1FC-F3111-10
Required: 2
. BOLT, CAP
Price unavailable
. O-RING
20
Yamaha Motors
. O-RING2JG-F3147-00
Required: 2
. O-RING
Price unavailable
. RING, SNAP
21
Yamaha Motors
. RING, SNAP5P0-F3153-00
Required: 2
. RING, SNAP
Price unavailable
RACE, BALL 2
22
Yamaha Motors
RACE, BALL 21KL-F3412-10
Required: 1
RACE, BALL 2
Price unavailable
RETAINER, BALL BEARING
23
Yamaha Motors
RETAINER, BALL BEARING5VL-F341E-10
Required: 1
RETAINER, BALL BEARING
Price unavailable
RACE, BALL 2
24
Yamaha Motors
RACE, BALL 24RT-F3412-10
Required: 1
RACE, BALL 2
Price unavailable
RACE, BALL 1
25
Yamaha Motors
RACE, BALL 14RT-F3411-10
Required: 1
RACE, BALL 1
Price unavailable
RETAINER, BALL BEARING
26
Yamaha Motors
RETAINER, BALL BEARING1P6-F341E-10
Required: 1
RETAINER, BALL BEARING
Price unavailable
COVER, BALL RACE 2
27
Yamaha Motors
COVER, BALL RACE 25TL-F3416-00
Required: 1
COVER, BALL RACE 2
Price unavailable
NUT
28
Yamaha Motors
NUT90179-25812
Required: 2
NUT
Price unavailable
HOLDER, BRAKE HOSE 1
29
Yamaha Motors
HOLDER, BRAKE HOSE 1BJ8-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
HOLDER, BRAKE HOSE 2
30
Yamaha Motors
HOLDER, BRAKE HOSE 22SX-F5876-00
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
-10%
DEEP FLANGE BOLT
31
Yamaha Motors
DEEP FLANGE BOLT95D02-06010-00
Required: 2
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.45
$0.40
You save $0.04
More details
HOLDER, CABLE
32
Yamaha Motors
HOLDER, CABLEBJ8-F1161-00
Required: 1
HOLDER, CABLE
Price unavailable
-10%
DEEP FLANGE BOLT
33
Yamaha Motors
DEEP FLANGE BOLT95D02-06010-00
Required: 1
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.45
$0.40
You save $0.04
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
