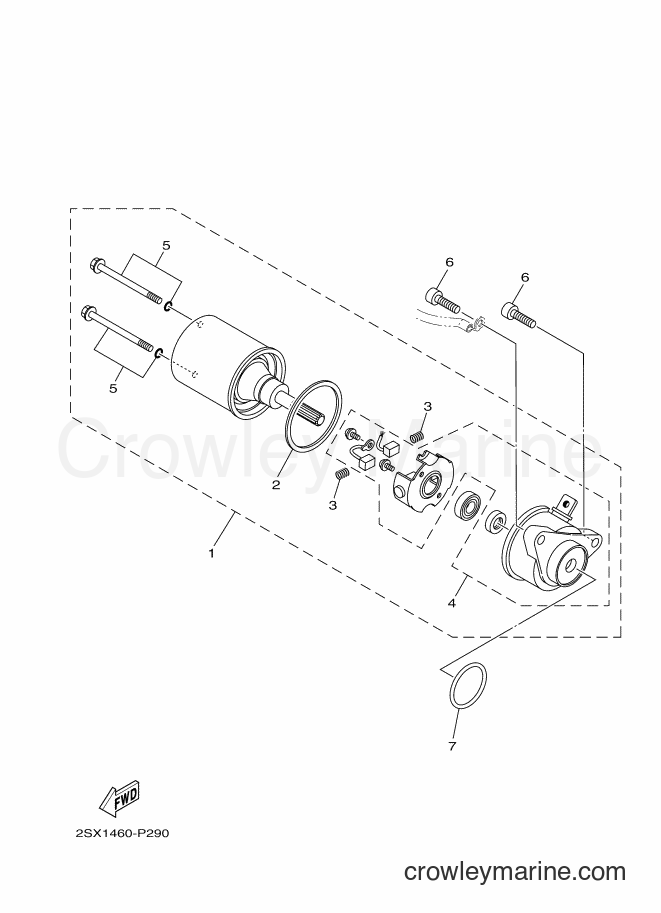

2018 Street Bike LNR125 - LNR125 (2SX7) [010] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNR125 (2SX7) [010] - STARTING MOTOR
Change View:
MOTOR ASSY
1
Yamaha Motors
MOTOR ASSY2SX-H1890-00
Required: 1
MOTOR ASSY
Price unavailable
. O-RING
2
Yamaha Motors
. O-RING1KP-H1847-00
Required: 1
. O-RING
Price unavailable
. SPRING, BRUSH
3
Yamaha Motors
. SPRING, BRUSH1KP-H1617-00
Required: 2
. SPRING, BRUSH
Price unavailable
. FRONT BRACKET ASSY
4
Yamaha Motors
. FRONT BRACKET ASSY2SX-H1830-00
Required: 1
. FRONT BRACKET ASSY
Price unavailable
. SCREW 2
5
Yamaha Motors
. SCREW 22SX-H1828-00
Required: 2
. SCREW 2
Price unavailable
-10%
BOLT
6
Yamaha Motors
BOLT91332-06020-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$0.30
$0.27
You save $0.03
More details
O-RING
7
Yamaha Motors
O-RING93210-29803
Required: 1
O-RING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
