2018 Street Bike LNR125 - LNR125 (B214) [010] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

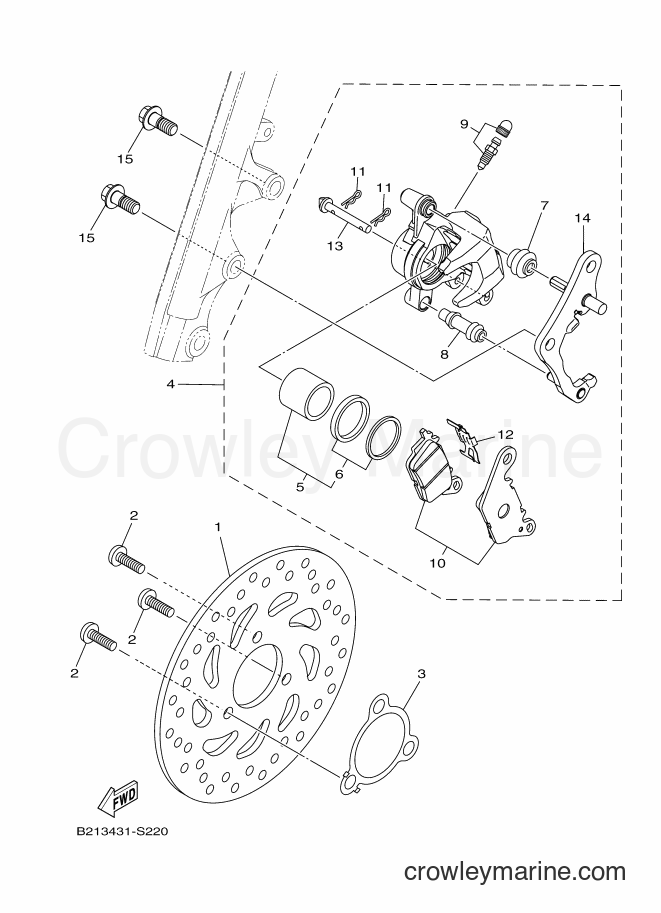

Yamaha Motors LNR125 (B214) [010] - FRONT BRAKE CALIPER
Change View:
DISK, BRAKE (RIGHT)
1
Yamaha Motors
DISK, BRAKE (RIGHT)1KP-F582U-01
Required: 1
DISK, BRAKE (RIGHT)
Price unavailable
-10%
Bolt (F1ZR)
2
Yamaha Motors
Bolt (F1ZR)90111-08815-00
Required: 3
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.60
$1.44
You save $0.16
More details
PLATE, FITTING
3
Yamaha Motors
PLATE, FITTING54P-F518A-00
Required: 1
PLATE, FITTING
Price unavailable
CALIPER ASSY (RIGHT)
4
Yamaha Motors
CALIPER ASSY (RIGHT)2SX-F580U-10
Required: 1
CALIPER ASSY (RIGHT)
Price unavailable
. PISTON ASSY, CALIPER
5
Yamaha Motors
. PISTON ASSY, CALIPER2BM-F5802-00
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
. . CALIPER SEAL KIT
6
Yamaha Motors
. . CALIPER SEAL KIT5YP-F5803-50
Required: 1
. . CALIPER SEAL KIT
Price unavailable
. BOOT, CALIPER
7
Yamaha Motors
. BOOT, CALIPER2BM-F5917-00
Required: 1
. BOOT, CALIPER
Price unavailable
-10%
Boot 2 (1S71)
8
Yamaha Motors
Boot 2 (1S71)5YP-F5937-00-00
Required: 1
. BOOT 2
Cross Ship
Leaves in 2-5 days
$3.70
$3.33
You save $0.37
More details
-10%
Bleed Screw Kit
9
Yamaha Motors
Bleed Screw Kit15B-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 4C9-W0048-00-00
Cross Ship
Leaves in 2-5 days
$21.99
$19.79
You save $2.20
More details
. BRAKE PAD KIT
10
Yamaha Motors
. BRAKE PAD KIT2BM-F5805-00
Required: 1
. BRAKE PAD KIT
Price unavailable
-10%
CLIP (1S71)
11
Yamaha Motors
CLIP (1S71)5YP-F5925-01-00
Required: 2
. CLIP
Cross Ship
Leaves in 2-5 days
$0.60
$0.54
You save $0.06
More details
. SUPPORT, PAD
12
Yamaha Motors
. SUPPORT, PAD2BM-F5919-00
Required: 1
. SUPPORT, PAD
Price unavailable
. PIN, PAD
13
Yamaha Motors
. PIN, PAD5YP-F5924-10
Required: 1
. PIN, PAD
Price unavailable
. SUPT. BRKT. ASSY.
14
Yamaha Motors
. SUPT. BRKT. ASSY.2DP-F5920-00
Required: 1
. SUPT. BRKT. ASSY.
Price unavailable
BOLT, FLANGE
15
Yamaha Motors
BOLT, FLANGE90105-10831
Required: 2
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
