2018 Street Bike LTF125-A - LTF125-A (B8B2) [010] CAMSHAFT & CHAIN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

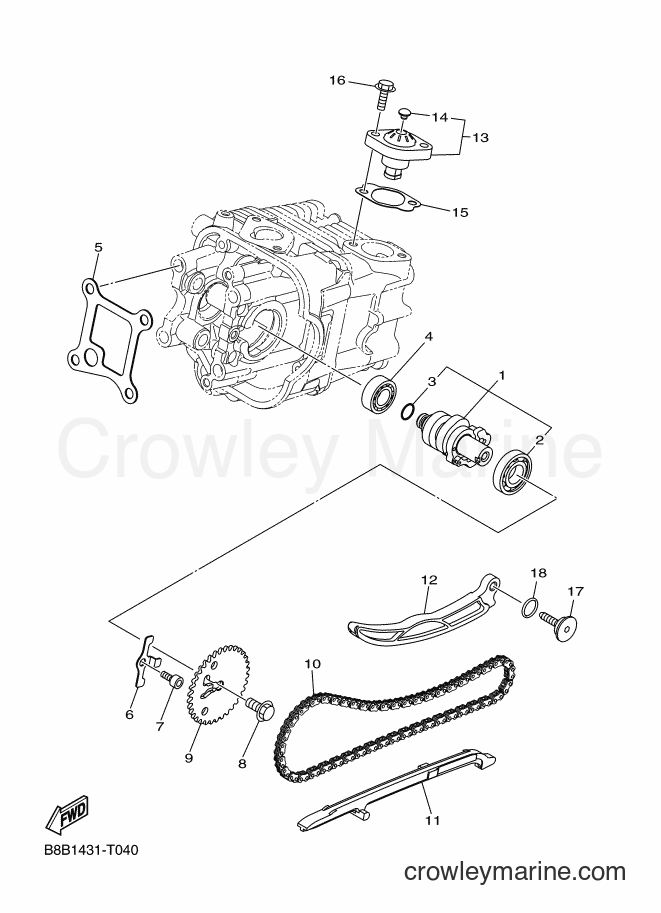

Yamaha Motors LTF125-A (B8B2) [010] - CAMSHAFT & CHAIN
Change View:
CAMSHAFT ASSY 1
1
Yamaha Motors
CAMSHAFT ASSY 1B8B-E2170-00
Required: 1
CAMSHAFT ASSY 1
Price unavailable
. BEARING
2
Yamaha Motors
. BEARING93316-003Y1
Required: 1
. BEARING
Price unavailable
. O-RING
3
Yamaha Motors
. O-RING93210-09805
Required: 1
. O-RING
Price unavailable
BEARING
4
Yamaha Motors
BEARING93306-001YG
Required: 1
BEARING
Price unavailable
PLATE
5
Yamaha Motors
PLATE2BM-E111F-00
Required: 1
PLATE
Price unavailable
PLATE 2
6
Yamaha Motors
PLATE 22BL-E112F-00
Required: 1
PLATE 2
Price unavailable
-10%
Bolt (4MY)
7
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Supersedes: 91312-06012-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BOLT, FLANGE
8
Yamaha Motors
BOLT, FLANGE90105-07802
Required: 1
BOLT, FLANGE
Price unavailable
SPROCKET, CAM CHAIN
9
Yamaha Motors
SPROCKET, CAM CHAINB8B-E2176-00
Required: 1
SPROCKET, CAM CHAIN
Price unavailable
CHAIN
10
Yamaha Motors
CHAIN94568-A6092
Required: 1
CHAIN
Price unavailable
GUIDE, STOPPER 1
11
Yamaha Motors
GUIDE, STOPPER 11YC-E2231-00
Required: 1
GUIDE, STOPPER 1
Price unavailable
GUIDE, STOPPER 2
12
Yamaha Motors
GUIDE, STOPPER 2B8B-E2241-00
Required: 1
GUIDE, STOPPER 2
Price unavailable
TENSIONER ASSY, CAM CHAIN
13
Yamaha Motors
TENSIONER ASSY, CAM CHAIN2ND-E2210-20
Required: 1
TENSIONER ASSY, CAM CHAIN
Price unavailable
. PLUG
14
Yamaha Motors
. PLUG5MX-E2222-00
Required: 1
. PLUG
Price unavailable
GASKET, TENSIONER CASE
15
Yamaha Motors
GASKET, TENSIONER CASEB8A-E2213-00
Required: 1
GASKET, TENSIONER CASE
Price unavailable
BOLT
17
Yamaha Motors
BOLTB8B-E2157-00
Required: 1
BOLT
Price unavailable
-10%
O-Ring
18
Yamaha Motors
O-Ring93210-15171-00
Required: 1
O-RING
Supersedes: 93210-15862-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
