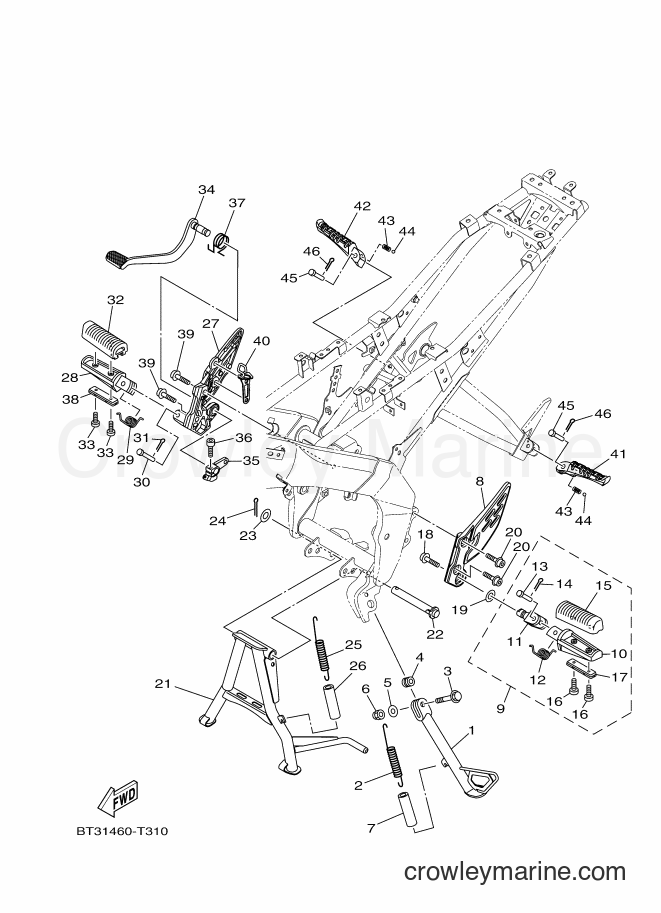

2018 Street Bike VXN155 - VXN155 (BT31) [010] STAND & FOOTREST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VXN155 (BT31) [010] - STAND & FOOTREST
Change View:
STAND, SIDE
1
Yamaha Motors
STAND, SIDEBT3-F7311-00
Required: 1
STAND, SIDE
Price unavailable
SPRING, TENSION
2
Yamaha Motors
SPRING, TENSION90506-28800
Required: 1
SPRING, TENSION
Price unavailable
BOLT, FLANGE
3
Yamaha Motors
BOLT, FLANGE90105-10888
Required: 1
BOLT, FLANGE
Price unavailable
-10%
COLLAR
4
Yamaha Motors
COLLAR90387-10003-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$28.99
$26.09
You save $2.90
More details
-10%
NUT
6
Yamaha Motors
NUT95617-10100-00
Required: 1
NUT, U
Supersedes: 95612-10100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
HOSE (L70)
7
Yamaha Motors
HOSE (L70)90445-21848
Required: 1
HOSE (L70)
Price unavailable
BRACKET, FOOTREST 1
8
Yamaha Motors
BRACKET, FOOTREST 1BT3-F7452-00
Required: 1
BRACKET, FOOTREST 1
Price unavailable
FRONT FOOTREST ASSY (LEFT)
9
Yamaha Motors
FRONT FOOTREST ASSY (LEFT)BT3-F7410-00
Required: 1
FRONT FOOTREST ASSY (LEFT)
Price unavailable
. FOOTREST
10
Yamaha Motors
. FOOTREST5BP-F7451-00
Required: 1
. FOOTREST
Price unavailable
. FOOTREST 1
11
Yamaha Motors
. FOOTREST 15BP-F7411-00
Required: 1
. FOOTREST 1
Price unavailable
-10%
Torsion Spring
12
Yamaha Motors
Torsion Spring90508-183B9-00
Required: 1
. SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$4.60
$4.14
You save $0.46
More details
-10%
CLEVIS PIN
13
Yamaha Motors
CLEVIS PIN91701-08035-00
Required: 1
. PIN
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
. COVER, FOOTREST
15
Yamaha Motors
. COVER, FOOTREST3C1-F7413-00
Required: 1
. COVER, FOOTREST
Price unavailable
Pan Head Screw
16
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98502-05020-00
Cross Ship
Leaves in 2-5 days
$3.15
More details
. WEIGHT
17
Yamaha Motors
. WEIGHTBT3-F622H-00
Required: 1
. WEIGHT
Price unavailable
-10%
Hexagon Socket Bolt
18
Yamaha Motors
Hexagon Socket Bolt90110-10026-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-10025-00
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Plate Washer
19
Yamaha Motors
Plate Washer90201-173U5-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
BOLT, HEXAGON SOCKET HEAD
20
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-08803
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
STAND, MAIN
21
Yamaha Motors
STAND, MAINBT3-F7111-00
Required: 1
STAND, MAIN
Price unavailable
SHAFT, MAIN STAND
22
Yamaha Motors
SHAFT, MAIN STAND1PA-F7112-00
Required: 1
SHAFT, MAIN STAND
Price unavailable
WASHER, PLATE
23
Yamaha Motors
WASHER, PLATE90201-16813
Required: 1
WASHER, PLATE
Price unavailable
SPRING, TENSION
25
Yamaha Motors
SPRING, TENSION90506-35821
Required: 1
SPRING, TENSION
Price unavailable
HOSE
26
Yamaha Motors
HOSE90445-26800
Required: 1
HOSE
Price unavailable
BRACKET, FOOTREST 2
27
Yamaha Motors
BRACKET, FOOTREST 2BT3-F7462-00
Required: 1
BRACKET, FOOTREST 2
Price unavailable
FOOTREST
28
Yamaha Motors
FOOTREST5BP-F7461-00
Required: 1
FOOTREST
Price unavailable
-10%
Torsion Spring
29
Yamaha Motors
Torsion Spring90508-184B0-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$3.15
$2.83
You save $0.31
More details
-10%
CLEVIS PIN
30
Yamaha Motors
CLEVIS PIN90240-08145-00
Required: 1
PIN, CLEVIS
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
COVER, FOOTREST
32
Yamaha Motors
COVER, FOOTREST3C1-F7413-00
Required: 1
COVER, FOOTREST
Price unavailable
Pan Head Screw
33
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05020-00
Cross Ship
Leaves in 2-5 days
$3.15
More details
PEDAL, BRAKE
34
Yamaha Motors
PEDAL, BRAKEBT3-F7211-00
Required: 1
PEDAL, BRAKE
Price unavailable
LEVER
35
Yamaha Motors
LEVERBT3-F7262-00
Required: 1
LEVER
Price unavailable
SPRING, RETURN
37
Yamaha Motors
SPRING, RETURN3C1-F7216-00
Required: 1
SPRING, RETURN
Price unavailable
WEIGHT
38
Yamaha Motors
WEIGHTBT3-F622H-00
Required: 1
WEIGHT
Price unavailable
BOLT, HEXAGON SOCKET HEAD
39
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-08803
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
STAY, STOP SWITCH
40
Yamaha Motors
STAY, STOP SWITCHBT3-F144G-00
Required: 1
STAY, STOP SWITCH
Price unavailable
FOOTREST, REAR 1
41
Yamaha Motors
FOOTREST, REAR 13C1-F7431-01
Required: 1
FOOTREST, REAR 1
Price unavailable
FOOTREST, REAR 2
42
Yamaha Motors
FOOTREST, REAR 23C1-F7441-01
Required: 1
FOOTREST, REAR 2
Price unavailable
-10%
Compression Spring
43
Yamaha Motors
Compression Spring90501-12743-00
Required: 2
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
BALL
44
Yamaha Motors
BALL93501-04830
Required: 2
BALL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
